FP-100S Tea Packaging Machine
Best-selling model with high production capacity. Upgraded version of the FP-CS with faster speed and easier maintenance. Flexible production is possible by supporting various tea types, filter materials, and bag sizes.
In stock, ready to ship
Product Details
The All-Rounder That Ensures Smooth Production at Any Scale
- High productivity with a capacity of up to 80 bags/minute.
- Servo motor driven, which makes the operation stable and maintenance easier compared to using conventional cylinders.
Flexibility to Realize Your Ideal Product!

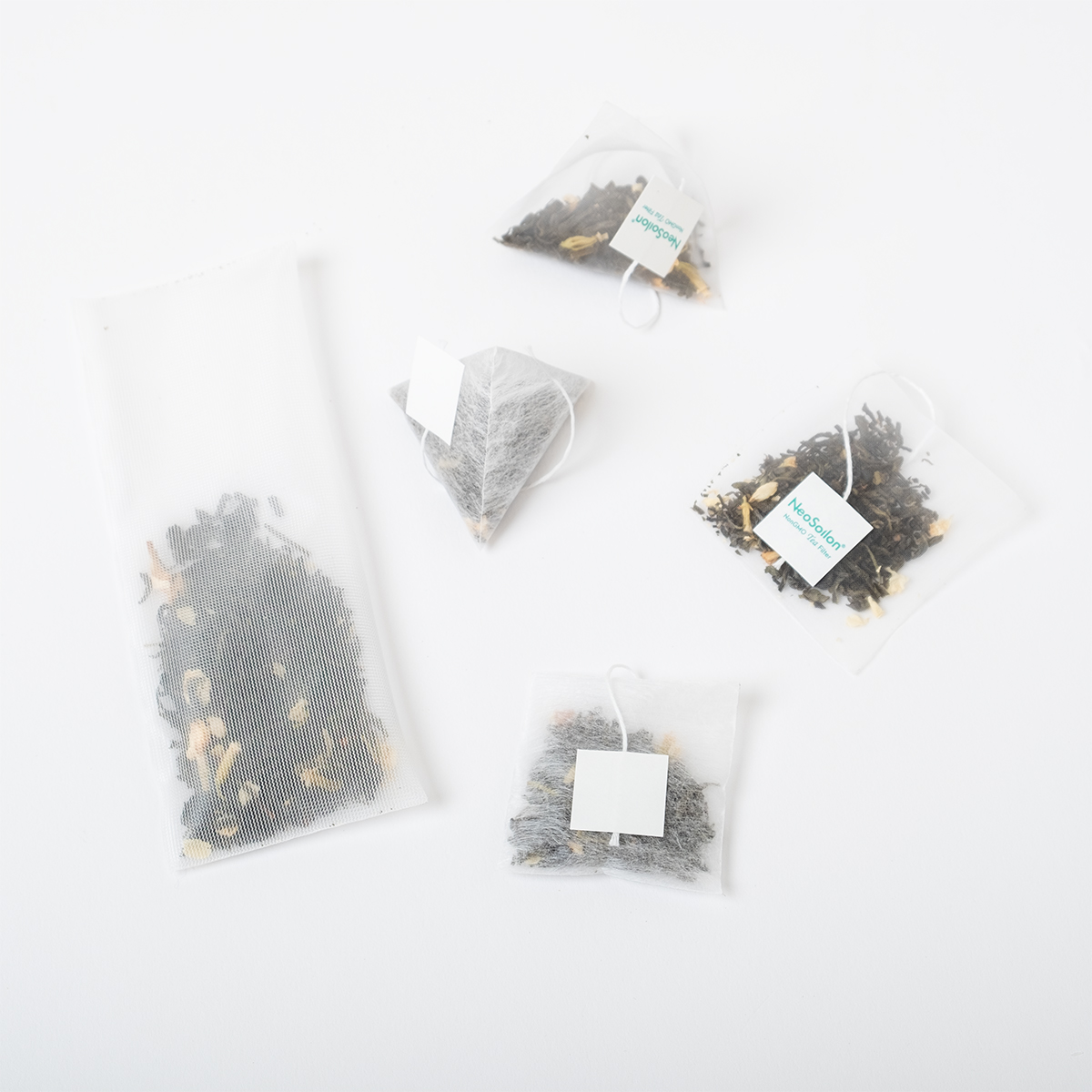

- Tea bags can be made in triangular or rectangular shapes, and can be easily switched between them at the push of a button. Large rectangular (multi-pitch) tea bags are also available as an option.
- Compatible with any filters that can be ultrasonically sealed, from 120 mm to 180 mm wide.
Accurate Weighing for All Your Tea Ingredients – Tea Leaves, Herbs, and Fruits
The high-precision weigher can be integrated, allowing you to select the optimal model based on your required weighing accuracy and tea material mixing needs.
Recommended Solution: FP-100S + FT-3
The integration of the FP-100S and the enveloping machine FT-3 offers an ideal solution for medium to large-scale production of enveloped triangular tea bags.
Recommended Solution: FP-100S + HP-500/HP-500W, FR-3, or GR-6SK
By integrating the FP-100S with the Yuwa\\\'s pouch packaging machine HP-500/HP-500W, FR-3, or GR-6SK, along with a counting system and a feeding lifter, pouch products containing the desired number of tea bags can be packaged.
| Specifications | Model |
| Packaging Method | 3-side ultrasonic sealing and cutting |
| Measurement Method | Load-cell weigher, volumetric rotary drum doser |
| Capacity | Up to 80 bags/minute |
| Weight | 450 kg |
| Dimensions | 1,005 (W) x 970 (D) x 2,260 (H) mm (Including the weigher) |
| Electrical Power Supply | 3 Phase 200 V 3.0 kW |
| Compressed Air Supply | 0.6 MPa 370 L/minute |
