FPG-T1 Enveloped Coffee Bag Packaging Machines
Long-selling entry-level model. Equipped with accurate slide doser weighing and nitrogen flushing function to produce high quality enveloped coffee bags.
In stock, ready to ship
Product Details
Supports Various Types of Coffee Bags to Realize Your Ideal Product!
- Various types of pour-over coffee bags, along with dip-style coffee bags, can be produced. Additionally, large (multi-pitch) bags are available as an option.
- Envelopes are flushed with nitrogen to reduce oxygen exposure, ensuring the products retain their freshness and flavor for a longer shelf life.
Optional NVF-100E Feeder Makes Production Safer and Easier
The optional NVF-100E feeder makes loading ground coffee effortless. The vacuum suction feeder not only reduces labor but also ensures stable volumetric measurements.
Recommended Solution: FPG-T1 + NRC-50D

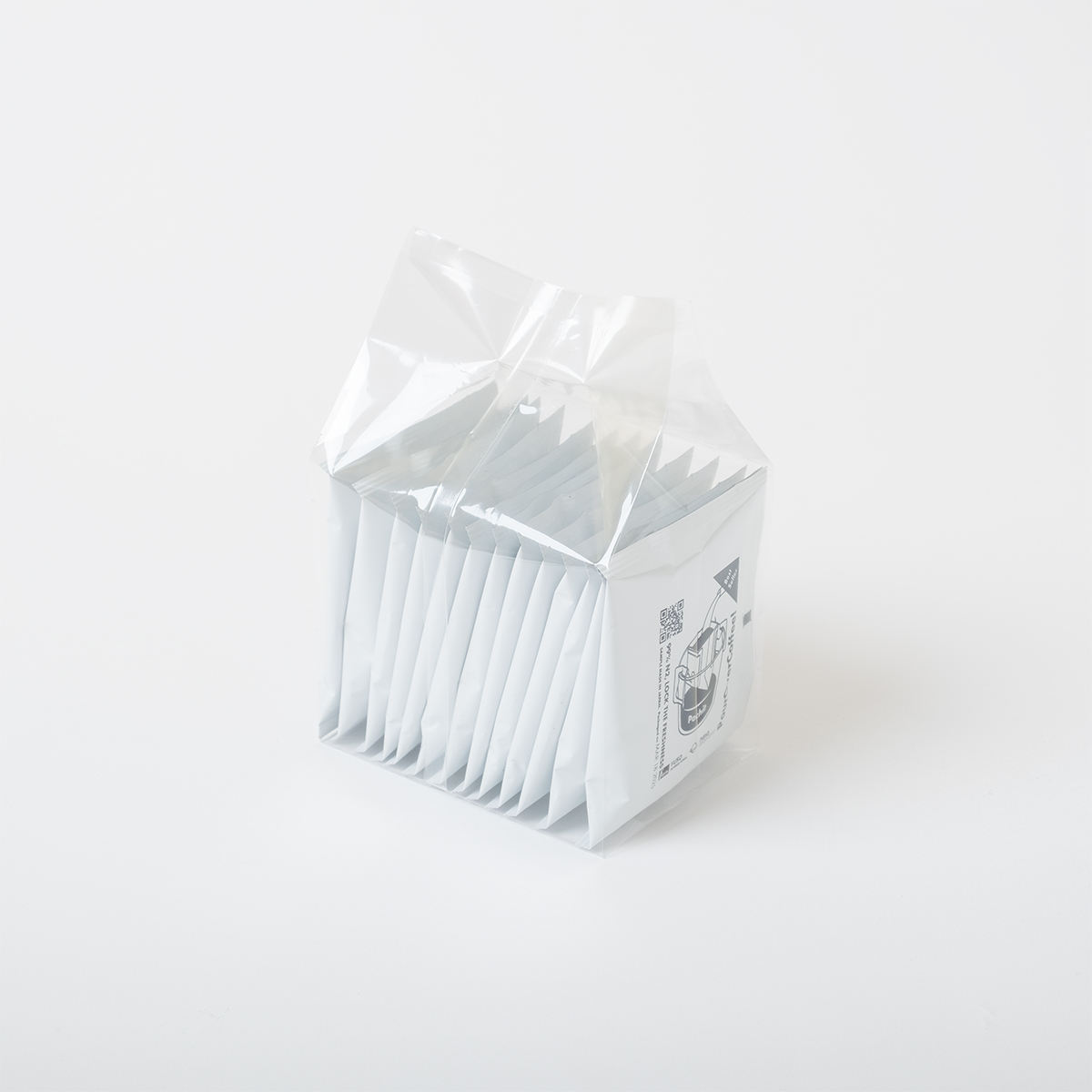

By integrating the FPG-T1 with the NRC-50D cartoner, you can semi-automate the cartoning of 5 to 8 enveloped coffee bags.
Recommended Solution: FPG-T1 + FR-3DR
By integrating the FPG-T1 with the FR-3DR outer bag filling machine, you can automate the packaging process of 5 to 9 enveloped coffee bags into side gusseted bags.
Recommended Solution: FPG-T1 + HP-DR
By integrating the FPG-T1 with the HP-DR outer bag filling machine, you can automate the packaging process of 10 to 20 enveloped coffee bags into side gusseted bags.
| Specification | Model |
| Packaging Method | Inner Bag: 3-side ultrasonic sealing and cutting Outer Envelope: 3-side heat sealing |
| Measurement Method | Volumetric slide doser, load-cell weigher |
| Capacity | Up to 50 bags/minute |
| Weight | 880 kg |
| Dimensions | 1,340 (W) x 1,140 (D) x 2,915 (H) mm |
| Electrical Power Supply | 3 Phase 200 V 2.2 kW |
| Compressed Air Supply | 0.6 MPa 320 L/minute |
| Envelope Size | Length (Pitch): 85 to 135 mm Width: 70 to 120 mm |
